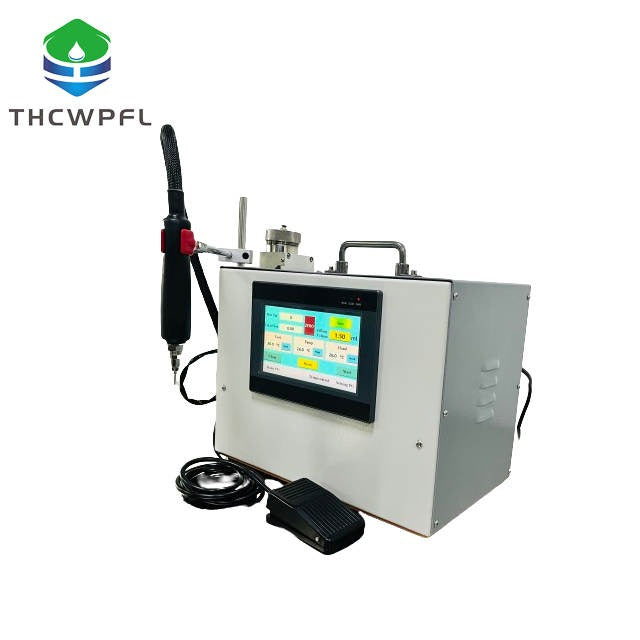

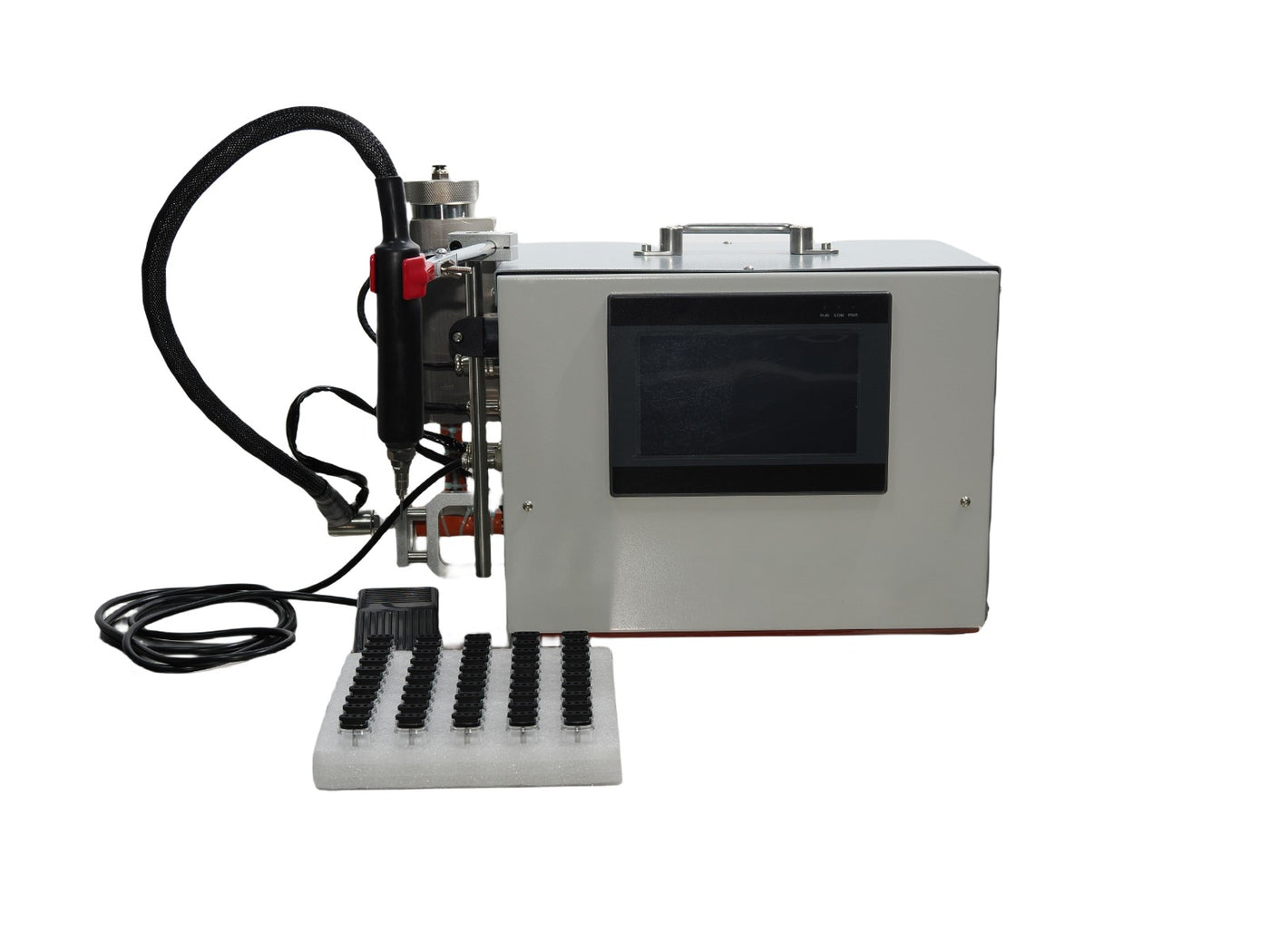

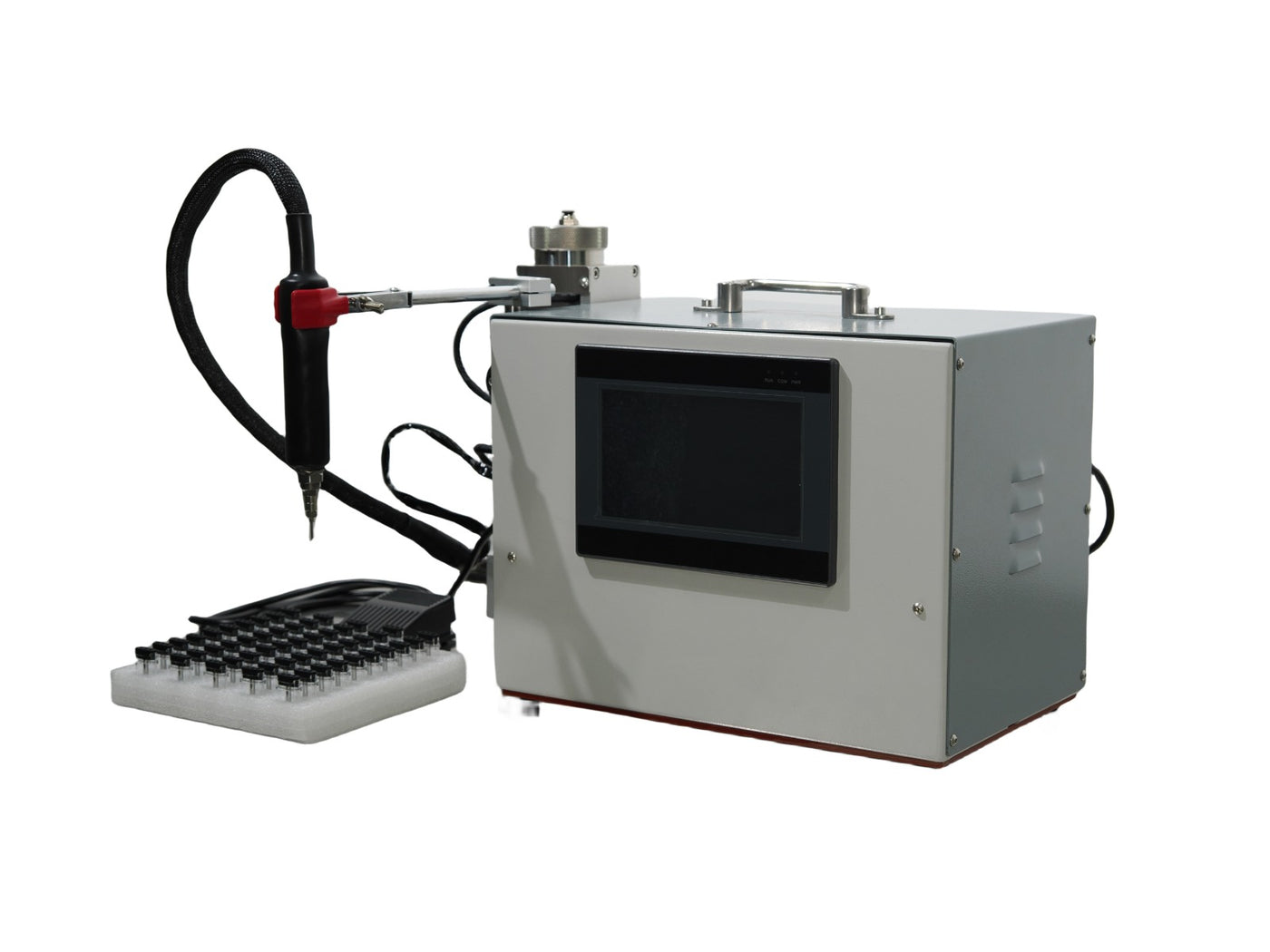

ZW-100R High Precision Oil Filling Machine
The ZW-100R High Precision Oil Filling Machine is a professional filling solution designed for applications where accurate, repeatable and consistent liquid dosing is required. Its compact design combines a motor-driven filling mechanism with touchscreen controls, allowing operators to configure filling volume, filling speed and operating modes from the integrated control system.
According to the supplied manufacturer manual, the machine provides a single filling range of 0.2ml–2ml, with a stated liquid injection accuracy of ±1%. Its working efficiency is rated at approximately 600–1,200 pieces per hour, depending on the filling volume and application.
Precision Filling Control
The ZW-100R uses a motor + screw drive system together with PLC and touchscreen control. The 7-inch touchscreen provides access to key operating functions, including filling volume, filling speed, automatic filling intervals, cleaning, and reset functions.
Operators can use manual or automatic operating modes depending on the production requirements. The system also provides filling counts and total flow information, while the start function can be used for individual or continuous filling operations.
Heated Liquid Filling System

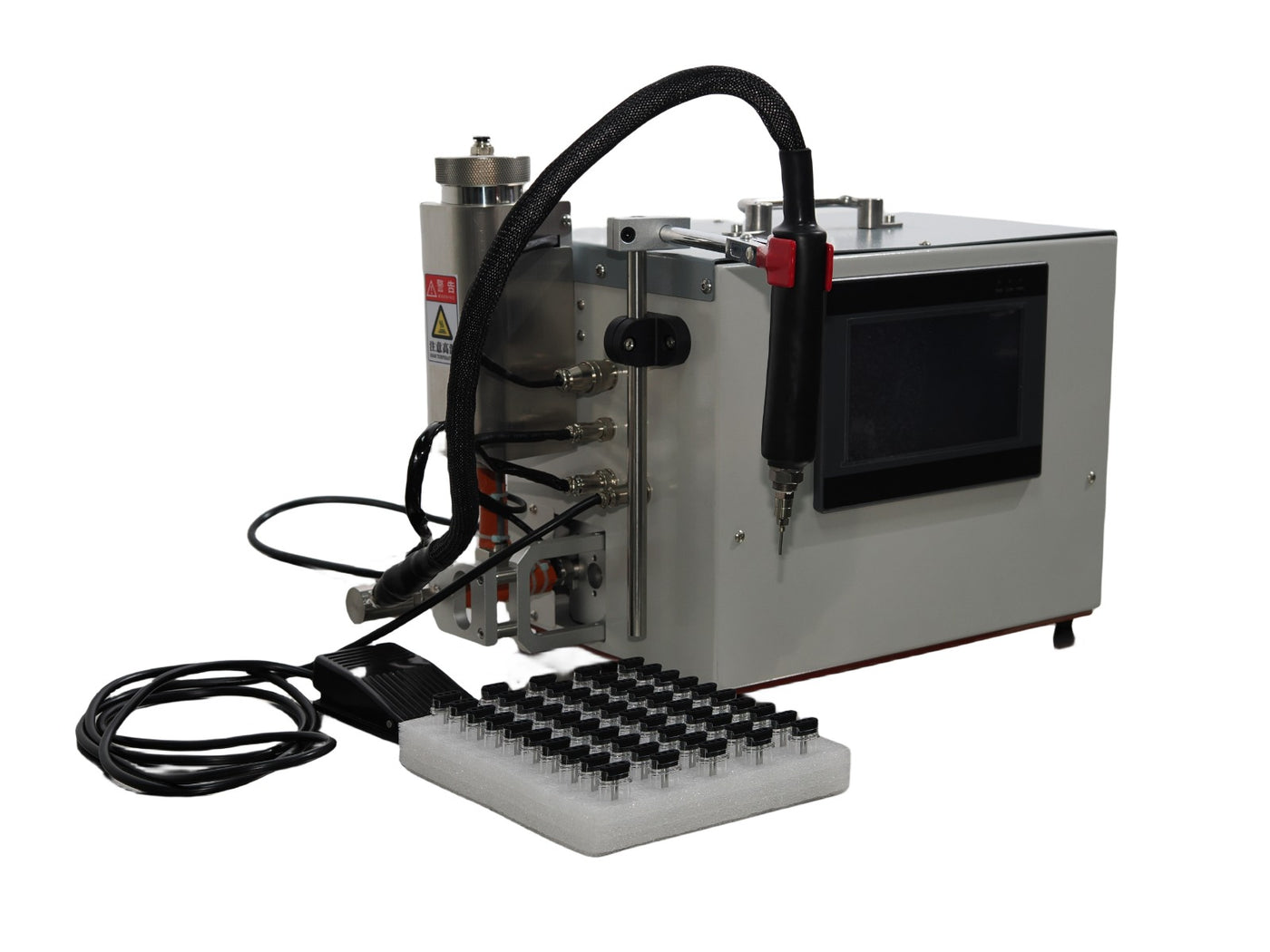

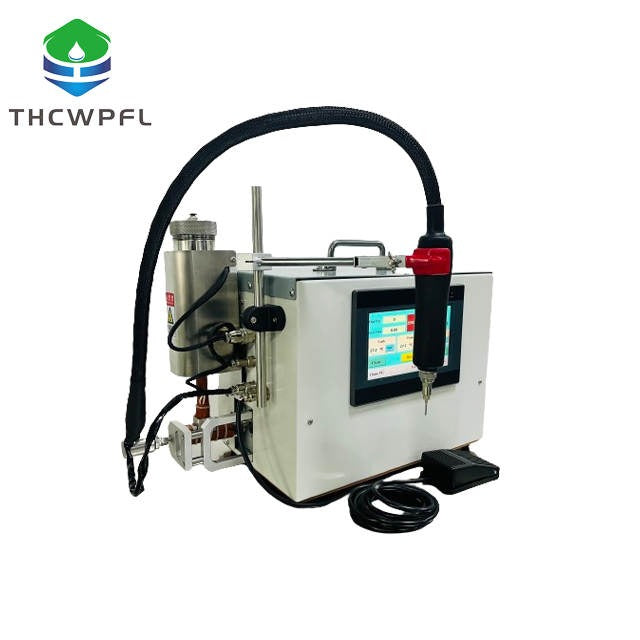

The machine includes a 300ml heated oil storage drum and a dedicated heating system. The supplied manual explains that heating can be used when working with suitable heated liquids, helping maintain the required liquid condition during the filling process.
The heating controller allows the operator to adjust start and stop temperatures, while additional functions include temperature calibration, delayed start, data lock, and high-temperature alarm settings. The manufacturer advises that non-professional operators should not alter the advanced settings.
Designed for Consistent Production
With a stated throughput of 600–1,200 fillings per hour, the ZW-100R can help streamline repetitive filling work while maintaining consistent dosing. Actual production speed depends on the liquid and selected filling volume.
The machine’s compact dimensions of approximately 240 × 380 × 300mm and net weight of around 14kg make it relatively compact for a professional filling machine. The manual lists the wooden shipping case at approximately 350 × 490 × 365mm, with a gross weight of around 18.5kg.
Key Features
- Model: ZW-100R
- Filling range: 0.2ml–2ml
- Filling accuracy: ±1%
- Working efficiency: 600–1,200 pieces/hour
- Tank capacity: 300ml
- Drive system: Motor + screw
- Control system: PLC + touchscreen
- Screen: 7-inch touchscreen
- Heated oil storage drum
- Adjustable filling volume
- Adjustable filling speed
- Automatic and manual operating modes
- Automatic filling interval control
- Cleaning and air-exhaust function
- Filling counter and total flow display
- Compact professional design
- Approx. machine dimensions: 240 × 380 × 300mm
- Approx. net weight: 14kg
Easy Touchscreen Operation
The integrated touchscreen provides a straightforward interface for controlling the filling process. Operators can adjust filling volume and speed, select automatic or manual operation, initiate cleaning, reset the machine and start individual or continuous filling cycles.
The cleaning interface also allows cleaning speed, cleaning intervals and cleaning cycles to be configured, making routine machine preparation and maintenance easier.
Maintenance & Safety
The supplied manual recommends using the machine in a dust-free indoor environment and lubricating the travelling guide and filling screw regularly. It also warns that operating above the recommended speed can reduce filling precision and accelerate machine wear.
Users should follow the manufacturer’s operating and safety instructions, including proper grounding, appropriate power supply, safe handling around the filling needle and switching off and unplugging the machine before cleaning, maintenance or movement.
What’s Included
Based on the supplied manual, the machine setup includes connections/components for the heated oil drum, heating pad/device, injection handle and foot switch, together with the filling system.
Please check the exact included accessories with the seller before purchase, as the manual describes the machine and its operating components but does not provide a definitive retail-box contents list.
